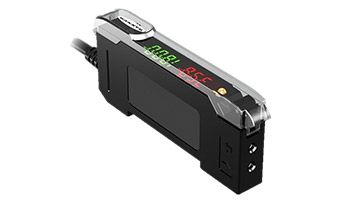

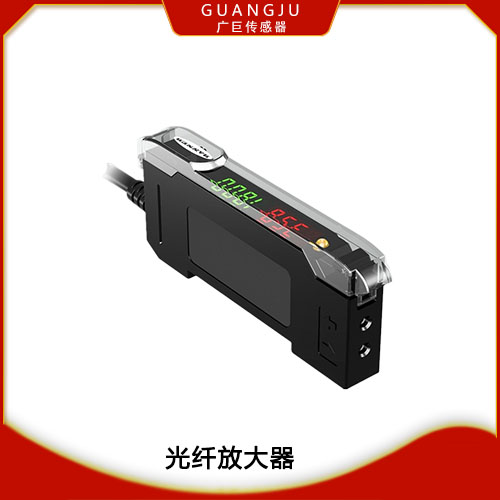

E3X-NA11光纖放大器
主要特點
●用8回轉調整旋鈕可進行微調整的通用型。
●是傳統產品檢測距離的2倍。
●帶有應差可變旋鈕
●使用脈沖亮燈進行20y S的超高速應答。
●以綠色光源可檢測微妙的色差。
●用8回轉調整旋鈕可進行微調整的通用型。
●是傳統產品檢測距離的2倍。
●帶有應差可變旋鈕
●使用脈沖亮燈進行20y S的超高速應答。
●以綠色光源可檢測微妙的色差。
| E3X-NA11光纖放大器Fiber optic amplifier | ||||||||||
一、主要特點 Main Features ●是傳統產品檢測距離的2倍。 ●帶有應差可變旋鈕 ●使用脈沖亮燈進行20ψS的超高速應答。 ●以綠色光源可檢測微妙的色差。 ●Universal type with 8-shaped rotated adjusting knob to do micro-adjustment. ●Double detection distance of traditional product ●With a variable knob ●With pulsing light to respond within an ultra-short time of 20 ●Can detect delicate aberration with green light source |  | |||||||||
| 型號 | GJ-F | NPN | NA11 | NA21 | NA11F | NA11V | NAG11 | NA6 | NAG6 | NA14V |
| PNP | NA41 | NA51 | NA41F | NA41V | NAG41 | NA8 | NAG8 | NA44V | ||
| 光源（發光波長） light source (ight-emitting wavelength) | 紅色發光二極管 Red light-emitting diode(660nm) | |||||||||
| 光源（發光波長） | DC10-30V[含脈動（P-P）10%]DC10-30V[with the pulse(p-p)10%] | |||||||||
| light source (ight-emitting wavelength) | 35mA以下 The following 35mA | |||||||||
| 控制輸出 Output Control | 負荷電源電壓DC35以下，負荷電流100mA以下（留電壓1V以下）集電極開路輸出形（NPN/PNP的輸出因形式不同而異）入光時ON/遮光時ON開關轉換式 Main voltage of load is below DC35v,load current is below 100mA(residual voltage below 1v),OPEN-collector output type(NPN or PNP output varies in different state),on when | |||||||||
| 應答時間 Response time | 動作·復位、各200ψS以下 Reset action,the following 200ψS | |||||||||
| 靈敏度調整 Sensitivity adjustment | 8旋轉無終端旋鈕（帶有指示器） 8 rotary knob without end (with indicator) | |||||||||
| 保護電路 Protection circuit | 金屬安裝配件，調整用螺絲刀，操作說明 The installation of metal accessories used to adjust screwdriver,operation manuals | |||||||||
| 照明 Lighting | 保護電源逆接線，保護輸出短路，防止相互干擾功能 Protection against the power connection,output short circuit protection to prevent interference function | |||||||||
| 周圍溫度 Ambient temperature | 受光面的光照度，白熾燈；3000rx以下，太陽光10000rx以下 Smooth by the light,incandescent 3000rx below,following the sun 10000rx | |||||||||
| 周圍濕度 Surrounding humidity | 動作時；-25~55℃，保存時；40~70℃（不能有給冰，結露現象） When action:-25~+55℃,save time; 40~70℃(there can not be frozen,the phenomenon of condensation) | |||||||||
| 絕緣電阻 Insulation resistance | 20mΩ以下（DC500MV以兆計）20mΩ above(DC500MV to trillion dollars) | |||||||||
| 耐電壓 Voltage resistance | AC1,000V 50/60Hz 1min | |||||||||
| 振動（耐久）Vibration(durable) | 10-55Hz 復振幅1.5mmX、Y、Z各方向2h 10-55Hz complex amplitude 1.5mm X,Y,Z direction of the 2h | |||||||||
| 沖擊（耐久）Shock(durable) | 500m/s 2X,Y,Z 各方向3次500/s2 X,Y,Z, Zdirection of the 3rd | |||||||||
| 保護構造 Protection structure | IBC規格IP50（安裝保護蓋時）IBC Standard IP50(when the installation of protective cover) | |||||||||
| 連接方式 Connection | 導線引出開型（標準線長2m）Open-wire lead(standard long line 2m) | |||||||||
| 質量（以包裝情況下）Weight(in cases) | 100g | |||||||||
| 材料Materials | 外殼 Shell | 耐熱 ABS Heat-resistant ABS | ||||||||
| 保護罩 The protective shield | 聚脂 Polyester | |||||||||
| 附屬品 Accessories | 金屬安裝配件，調整用螺絲刀，操作說明 The installation of metal accessories used to adjust screwdriver,operation manuals | |||||||||
